Finding Images with Straws

I've seen the image from both sides now

Finding the image using soda straws.

Introduction

Our brain combines two different views of the world one from each of our two eyes to create one three-dimensional perception. In this activity we isolate two different views of an object by sighting through two different soda straws. These two views allow us to find the location of an object or an image.

Preliminary activity

Look at a point with two straws

Look through two straws, one with each eye, at a brightly colored point. Notice how the straws both line up with the point.

Material

• Eye glasses or eye protectors
• Two soda straws
• A piece of paper
• A felt tip pen

Assembly

Make a small dot on the piece of paper.
Place the paper on the table in front of you.

To Do and Notice

Put on glasses or eye protectors.

Look through safety glasses and two straws at a dot on a piece of paper.

Look through one soda straw with one eye until you see the point.
Look through two soda straws, one with each eye until you see the point through both of them at the same time.
Hold the soda straws in position then back up and look at them. Or do this activity with a partner and observe the straws while your partner looks at the point.

Change your distance from the point and note how the straws change. The two straws always lie on lines which cross at the position of the point. When your eyes are farther from the point the straws become closer to parallel.

Move the dot away and the straws become more closely parallel.

What's Going on?

Like travels in straight lines.
Light radiates out in all directions from the colored point.
To see the light through a straw the straw must surround a ray of light coming from the point and going into the pupil of your eye. Thus when a point can be seen through two straws at the same time the two straws must be on lines that come together at the point

Main Activity

Finding the location of an image.

Details of the setup, click to enlarge.

Material

To make the image locator

• two soda straws
• three common pins
• a 9x9” square of corrugated cardboard or foam board

To make the image

• A large plastic "page magnifier" ( 8x10” or larger) Fresnel lens, from Rite-Aid Pharmacy
• Large binder clips from a stationery store
• Minimag light (or other bare bulb point of light e.g. Eveready)
If you use a bare filament lamp, run it on a dimmer so that it can be observed with comfort.

Optional

• tripod
• sticky tape
• string
• Books and magazines
• two meter sticks

Assembly

Make an image locator.
Push a pin through one end of each soda straw. Use the pins to attach the soda straws to adjacent corners of the 9x9” corrugated cardboard sheet. Push another pin through the other end of one straw and use it to pin the straw in place parallel to one edge of the cardboard. One straw will be fixed in place the other will be free to rotate about one end. See the next image below.

Mount the image locator
Attach the image locator to a photographic tripod with tape, this is by far the easiest method.
Or place it on a pile of books. Have some magazines handy to adjust the height of the pile.

To Do and Notice

For practice, find the location of an object with the image locator.
On a table, place an object which has a highly visible point associated with it, we prefer a minimag light with the bulb exposed and turned on, ( you might also use the tip of the wick of an unlit candle, or the colored-ball head of a pin stuck into a wood block.)
Move the image locator to the same height as the bulb about 0.25 meter (a handspan) from the bulb.
Look through the straw that is fixed at both ends and rotate the image locator and change its height until you can see the object. Fix the image locator in place so that it will not move, e.g. put a weight in the middle of it if it is one a pile of books, or lock the head of the tripod.

Look through the straw which is able to rotate. Rotate the straw until you can see the object through it.

Step back and look at both straws. A straight lines through both straws will cross at the location of the object.

You could tell where the object is just by looking at the straws!
You do not need to look at the object itself.

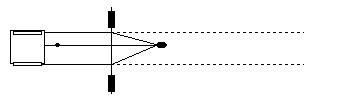

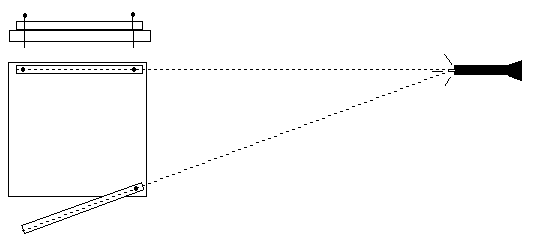

Image locator, straws attached to cardboard with pins, looking at a minimag light
Dashed lines show selected light paths from bulb through straws.

Optional, pull a string through each of the two straws. Pull both strings taut, and adjust them until each string passes through its straw in a straight line. The strings will cross at or near the point. Or, hold a meter stick over each straw, the light is where the meter sticks cross.

Now it's time to find an image.

First make an image.

Mount the page magnifier on two binder clips on a table.

Page magnifier Fresnel lens held by two binder clips, side view also shown.

Place the bare bulb of a minimag light about one meter from the lens, on a line perpendicular to and running through the center of the lens.

Place your head about half a meter from the page magnifier and look through the lens at the light.

\

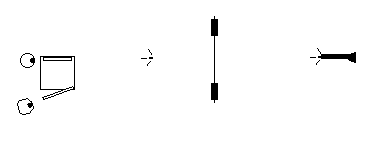

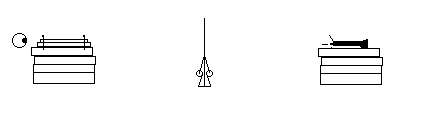

An eye looks through a Fresnel lens at the lit bulb of a minimag light on a pile of books.

You will see an image of the light.

Where does the image of the light appear to be?
Some people see it on the lens others see it between the lens and their heads.

To find where the image is &emdash; independent of human perception&emdash; do the following.

Mount the image locator about half a meter from the lens so that you can look through the one fixed straw at the image of the glowing lamp.
(Place it on the pile of books or use the tripod.)

An eye looks through the straw of an image locator at the image of a minimag light made by a Fresnel lens page magnifier.

Look through the second straw and rotate the straw until you can see the same point of light viewed through the first straw. Notice that two lines, one drawn through each straw, will cross at a point. The point at which the two lines cross is the location of the image.

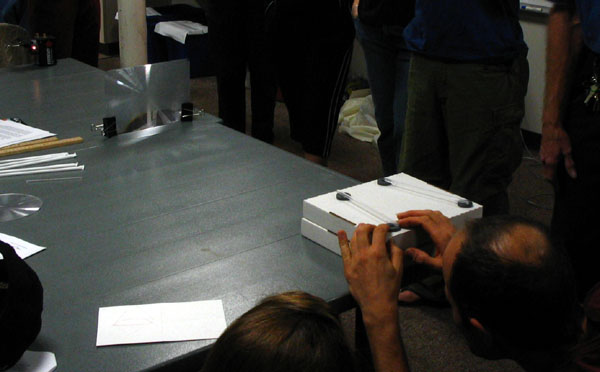

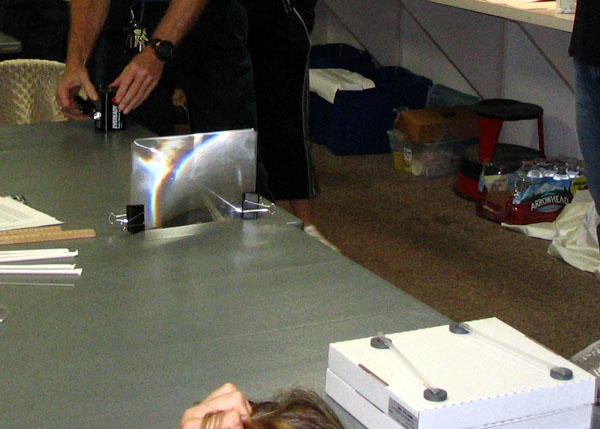

Point of light object is in the upper left corner. Look through the two straws to see the image made by the rectangular Fresnel lens. Click to enlarge.

Two eyes use the image locator to find the location of the image of a lit minimag bulb made by a Fresnel lens.

In the suggested setup above, the image is on the opposite side of the lens from the lamp.
It is more than one focal length from the surface of the lens.

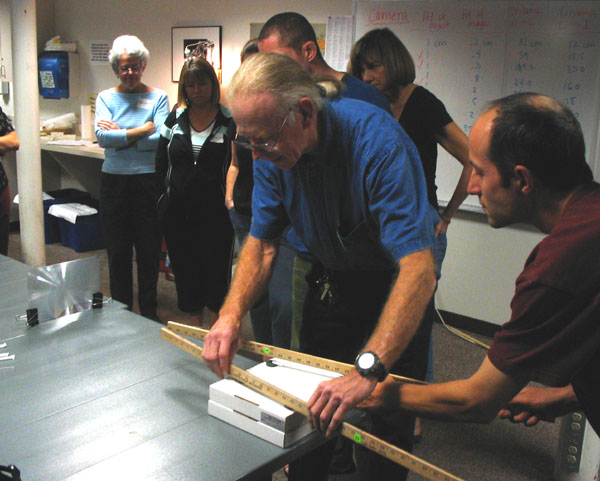

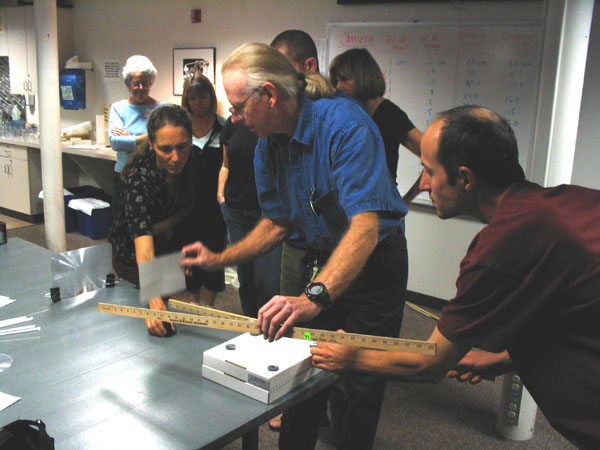

Line up rulers or strings with the straws and where they cross is the location of the image. Click to enlarge.

Check 1
You can check the position of the image by holding a piece of paper up as a screen between the Fresnel lens and the image locator. Start with the paper touching the lens. Move the paper away from the lens until you see an image of the light, in focus, on the paper. How close was your image location to the location of the image on the paper?

An image that appears on a piece of paper is called a real image.
An image on the far side of the lens is called a virtual image. It will not appear on a piece of paper.

A real image will appear on a piece of paper held at the image location. Click to enlarge.

Check 2
Hold a pencil or a finger next to the place where you have located the image. Look at the image and move your head side to side horizontally. If the pencil and the image are located at the same place they will move back and forth together as if they were joined. However, if the pencil and the paper are at different distances they will move apart and then together as you move back and forth.

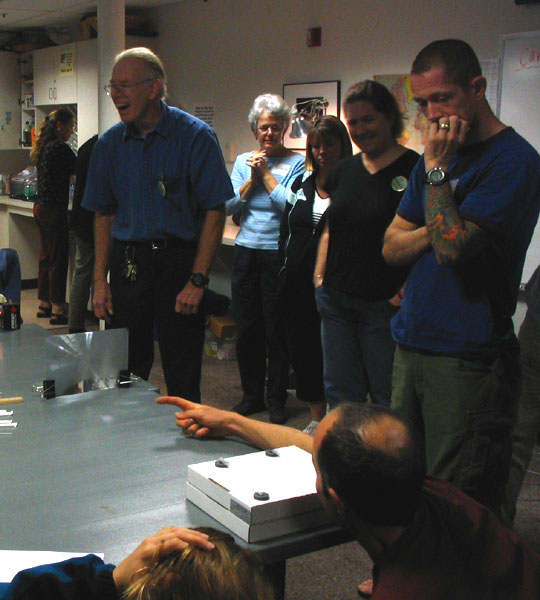

Hold a finger near the image, then move your head side to side, the image will move with the finger if they are located close together.
Click to enlarge.

What’s Going On?

Light travels out in straight lines from the bright point of the lamp.
When the light from the lamp strikes the lens it is bent by refraction.
Light that starts farther than one focal length (see the etc. below) from the lens is bent so that it comes back together at a point on the other side of the lens, the image point. Light that passes through the image point continues to spread in straight lines from the image point exactly as it would spread from an object. The light may then be seen by human eyes.

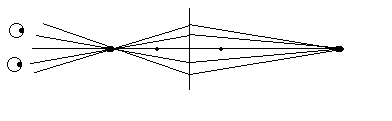

Two eyes observe two of the many rays of light which travel out of a bulb, and get bent by a Fresnel lens, crossing at an image location.

The eyes and brain reconstruct the image of the bulb. One set of clues from binocular vision and from accommodation of the eye indicates that the image is located at the point at which the light rays cross. This is the point found by the straw image locator.

Another set of clues based on the fact that near objects obscure more distant objects indicates that the image is located on the lens. (See Intro to image finding). Some people give more weight to the obscuration rule and see the image on the lens, others give more weight to the convergence of their eyes and see the image between the lens and their eyes.

When the light from the bulb reassembles at a point it can form an image on a piece of paper.

Etc.

The focal point of a lens is the point to which light converges when it comes into the lens as a parallel beam (parallel to a line through the center of the lens and perpendicular to the lens). A lens has two focal points one on each side, they are often very nearly the same distance from a lens. Even though we say that an image is in-focus it is not usually at the focal point.

Image location challenge

Create several different images and find their location.

Material

In addition to the material for the main image location activity
you will need a second Fresnel page magnifier,

Assembly

Find the focal length of your Fresnel page magnifier lens
Make an image of a distant light source, one that is at least 20 feet away. Hold a piece of paper near the Fresnel lens on the side opposite the distant light source. Move the paper away from the Fresnel lens until the spot of light is smallest, this is the image of the distant light.
Measure the distance from the lens to the image, this is the focal length of the lens.

From left to right, a sheet of paper with an image on it, a Fresnel lens in binder clips, and a light source
Find the focal length, f, of a Fresnel lens by making a real image of a distant light source appear on a sheet of paper.

To Do and Notice

Create and locate the following images:
1. Move the bulb twice as far from the Fresnel lens as in the main activity, locate the image. The image will be a real image closer to the focal point.

2. Move the bulb halfway between the focal point and the lens. The image will be on the same side of the lens as the bulb, further away from the lens than the focal point. This image is called a virtual image and cannot be seen on a piece of paper because no light actually goes from the object to the lens to the image. Instead the light goes from the bulb and is bent at the Fresnel lens so that it travels out as if it is spreading from the image.

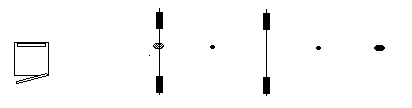

From left to right: image locator, Fresnel lens, bulb, image of bulb
An image locator observes the diverging rays of light bent by a Fresnel lens, from a lit bulb.
The rays appear to come from a more distant image bulb, a virtual image.

Check your answer using technique 2 above: Look at the image through the lens and the image location marker over the top of the lens!

3. Put the bulb close to the focal point. The image will be far away, the straws will be nearly parallel.

Light from a bulb placed at a focal point of a lens is bent into parallel paths by the lens. These parallel rays of light seem to come from a distant light source.

5. Place the bulb 0.25 meter from the Fresnel lens, clip a second Fresnel lens to the first. Find the location of the image made by the lens combination. Two lenses close together bend the light more than each lens alone. Two identical lenses act as one lens with half the focal length.

4. Place the bulb two focal lengths from the lens. The image will be two focal lengths on the other side of the lens. Place a second lens at the location of the image, i.e. two focal lengths from the first lens. The image made by the first lens is inside the middle of the second lens. The second lens does nothing to alter the location of an image that is in its middle. (However see the image relay activity for more about this combination of lenses.)

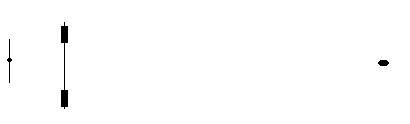

From left to right: image locator, image inside Fresnel lens, focal point of next Fresnel lens, Fresnel lens, focal point, light source
Light from a bulb is bent by one Fresnel lens to form an image in the center of a second Fresnel lens. The image locator sees the image inside the second Fresnel lens.

Math Root

If the distance from the center of the lens to an object is do,
and the focal length of a lens is f,
then the location of the image will be d
i

From left to right: image, focal point, Fresnel lens, focal point, object

The location of the image is given by the equation

1/f = 1/do +1/di

Combining lenses

A lens with a focal length f1
placed near a lens with a focal length f
2
behaves like one lens with a focal length of f
1f2/(f1+f2)

The power of a lens is often measured in diopters, D.
The power of the lens is D = 1/f
when f is the focal length measured in meters.
A 1 diopter lens has a focal length of 1 meter
a 2 diopter lens has a focal length of 1/2 m.

To find the power of two lenses in diopters simply sum their individual powers.

D = D1 + D2
